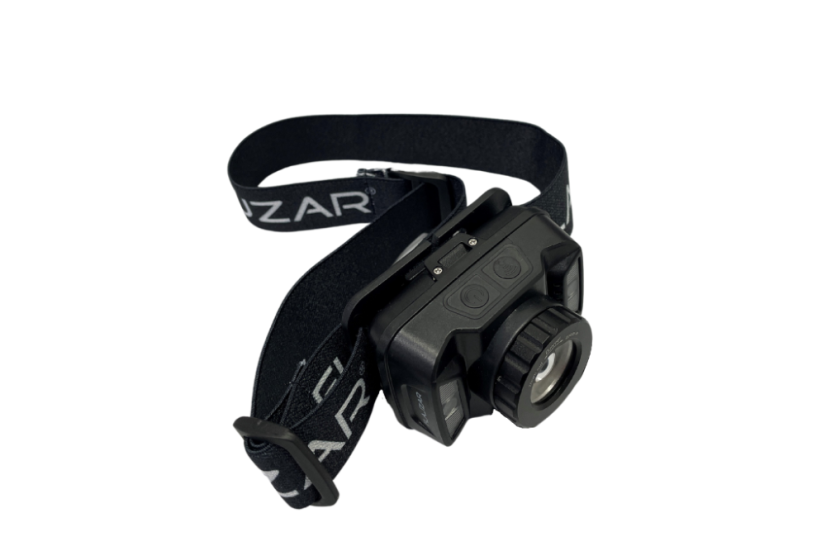

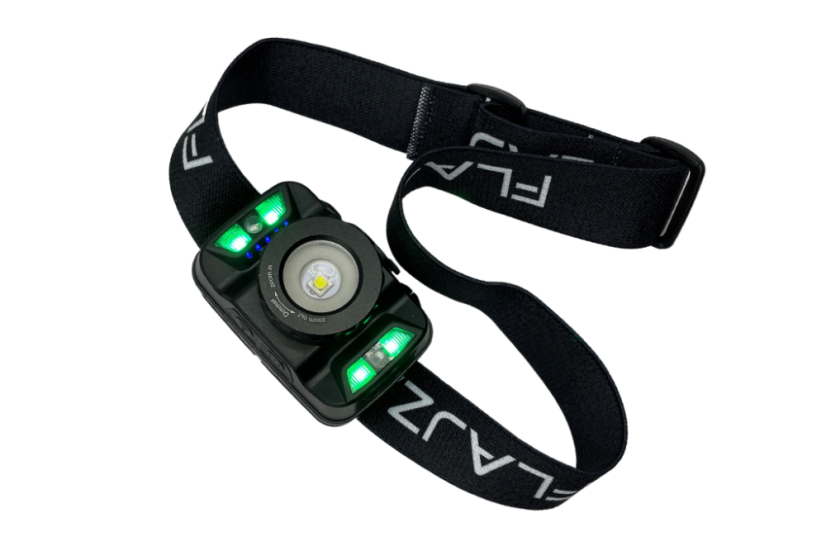

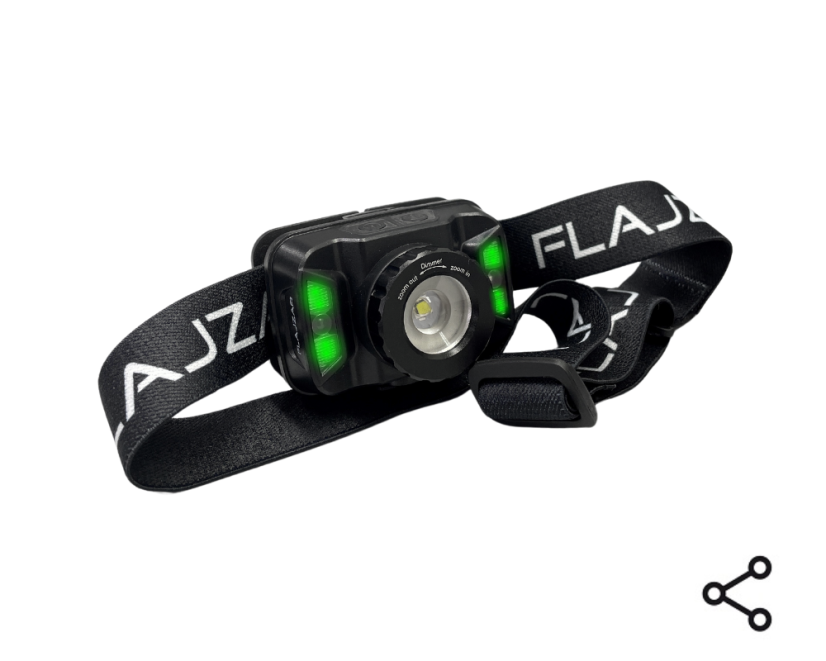

The HL346P headlamp with receiver is a unique rechargeable LED headlamp with a powerful battery, the option of choosing from two white and two red light fluxes, the Zoom function (expanding and narrowing the light flux) and also the possibility of turning on the Sensor by Hand Moving function (touchless control).
The headlamp has several essential advantages - long battery life, low weight and fast charging. The battery status is indicated by the blue diodes on the front of the headlamp.
The headlamp also has a high-quality strap that guarantees a good hold on your head. Of course, there is a sufficient level of IP protection for using the headlamp in nature.
The headlamp is intended not only for ordinary lighting, but thanks to the integrated receiver it can be automatically switched on after a bite. Up to 8 devices can be stored in the headlamp memory at the same time. The headlamp lights up not only when a fish is caught, based on the signal sent from the fish bite alarm, but also the alarm signal sent from the FISHTRON ALF3 alarm.
The headlamp can be paired (used) with FISHTRON NEON TX3, FISHTRON CatFish TX3, FISHTRON Q9-RGB TX, e3TX and FISHTRON ALF3 alarm.
Using the headlamp:
Power button - by pressing the button within 3 seconds, you can switch between 4 lighting modes:
1. white LED 100% - up to 3 hours of NONSTOP light
2. white LED 50% - up to 6 hours of NONSTOP light
3. red LED 100% - up to 11 hours of NONSTOP light
4. red LED 50% - up to 19 hours of NONSTOP light
SENSOR button - when pressed, touchless control mode is activated. By moving your hand within 25 cm of the headlamp, we control the contactless switching on and off of the headlamp.
Pairing the transmitter code in the headlamp memory
Press the button on the side of the headlamp and hold it for about 5 seconds, until the green LED on the front of the headlamp starts flashing. The headlamp switches to learning mode.
Now transmit with the device you want to pair with the headlamp - press the button on the shot indicator or on the alarm.
The headlamp receiver captures the signal, stores its code in memory and confirms it by flashing the white LED three times. Learning mode is then automatically terminated.
If the device code is already stored in memory, no action will be taken.
The new device will not be saved if the memory is full (the green LED on the front of the headlamp flashes quickly, the learning mode ends) or the device with this code is already stored (the green LED on the front of the headlamp goes out for approx. 1 second during learning).
Headlamp control with receiver button
If the receiver is not active (the green LED is not lit), the headlamp cannot be turned on with the side button.
If the receiver is active (green LED lights up), the side button can be used to turn the headlamp on or off.
ATTENTION! If the white LED lights up after a shot from the paired signaling device, the LED can only be turned off with the side button of the receiver.
|Compatibility||Q9-RGB TX, NEON TX3, CatFish TX3, e3TX, ALF3|
|Special functions||Optical zoom - the ability to narrow or widen the cone of light|
|Size (H x W x D)||52 x 70 x 46 mm|
|Number and type of batteries||built in Li-pol accumulator 3,7V/1800 mAh|
|Range||up to 150m|
|Luminous flux||up to 260 lm|
|Number of pairable devices||8|
|Degree of protection||IP 66|
|Battery status indication||5 blue LEDS on the front of the headlamp|
|Charging type||using USB-C cable|
|Number of LEDS||1 white LED, 4 red LED|
|Operating temperature||-10C° up to + 50C°|
