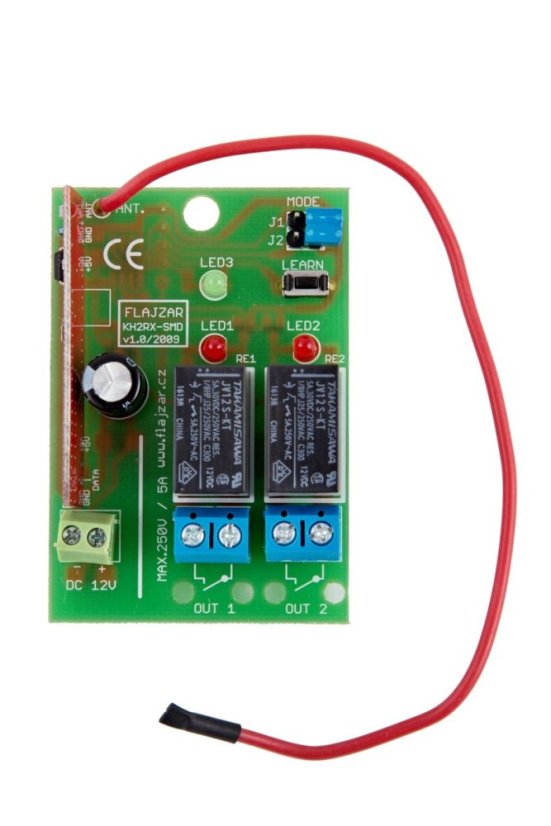

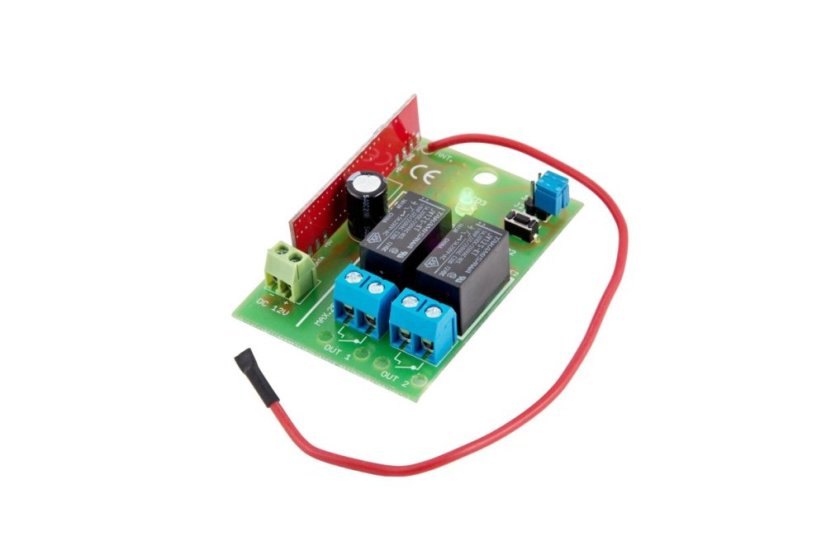

Remote control KEELOQ, 2 channal, SMD MODUL
Given the popularity of our remote controls kits with Microchip KEELOQ* circuits, we want to save you the time and offer an already assembled module fitted with SMD components. The same functions and possibility to select an operating mode as with the classical KP2RX kit. More
Product code: KH2RX-SMD EAN: 8594073545510 Shipping and Payment
Connect easily and teach it up to 15 keychains KV...TX. Possibility to order plastic boxes KM-27, order No: 880 (not supplied).
The module was tested in an accredited test laboratory and has a Declaration of Conformity.
Specifications:
- supply voltage: 12 V (10–14 V) DC
- current consumption – relay not connected: 10 mA maximum (0.6W source)
- current consumption – both relays connected: 50 mA maximum
- frequency: 433.92 MHz
- output type: contact relay
- output load: 250 V/5 A maximum
- module dimensions: 42 x 61 mm
- operating temperature range: -20 °C to +50 °C, dry environment
*Keeloq is a registered trademark of Microchip
