Programmable timer switch, kit
3 points to the loyalty system
Timer may operate in four modes, either in a bistable or monostable manner, which are set by shorting pins. More
Product code: 625 EAN: 8594073544391 Shipping and Payment
Power supply: 8–10 V AC or 12 V DC
Current consumption: 80 mA
Time interval: 15 s – 2 hours
PCB: 6x5 cm
Time intervals are also divided into four zones and also switched by pins. The timer output is equipped with a 230 V/5 A relay with a switching contact. Power-on indicate by an LED.

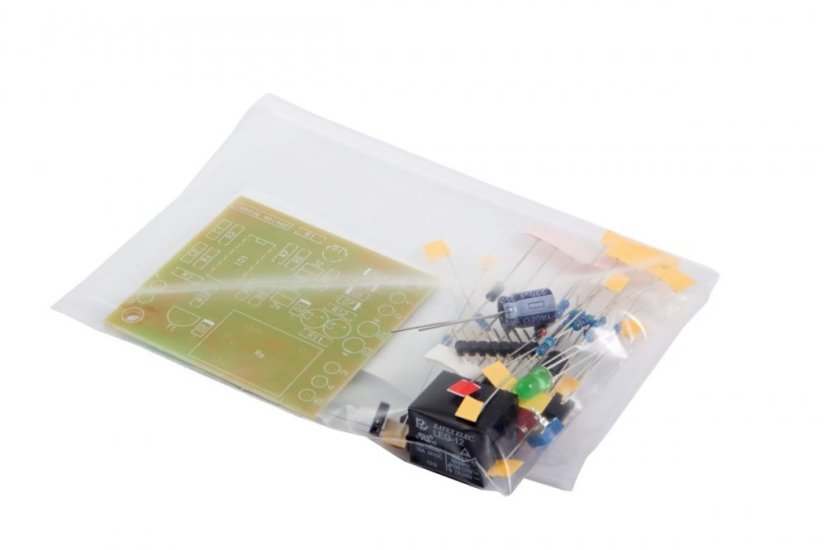

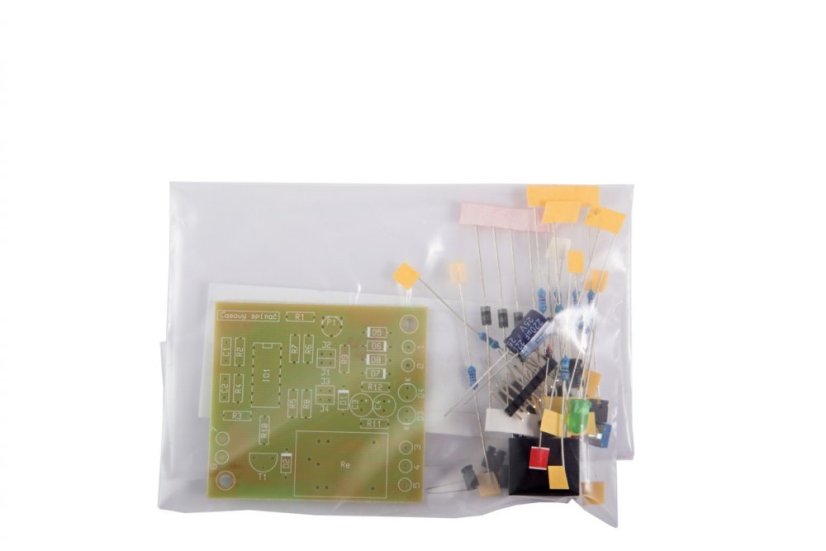

Electronic kit containing a complete set of components, printed circuit board and instructions, or other elements according to the specification.
Download
Navod625.pdf (pdf, 506.8 kB)
