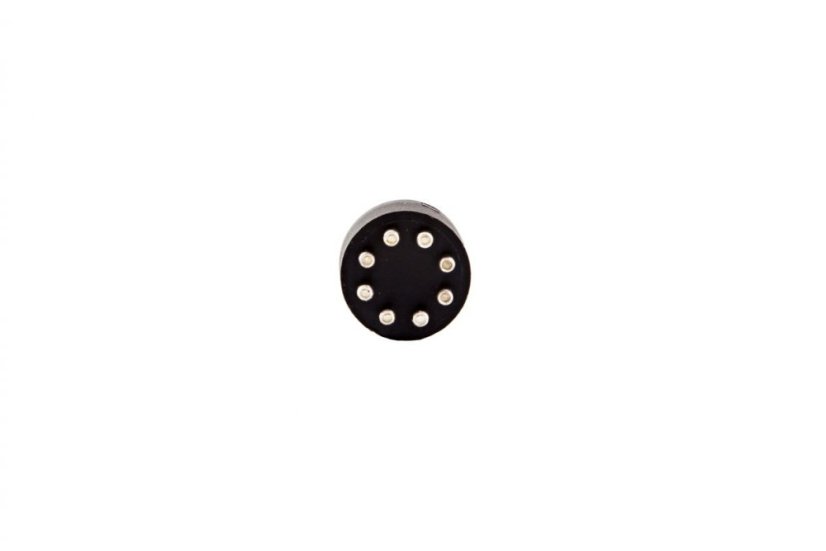

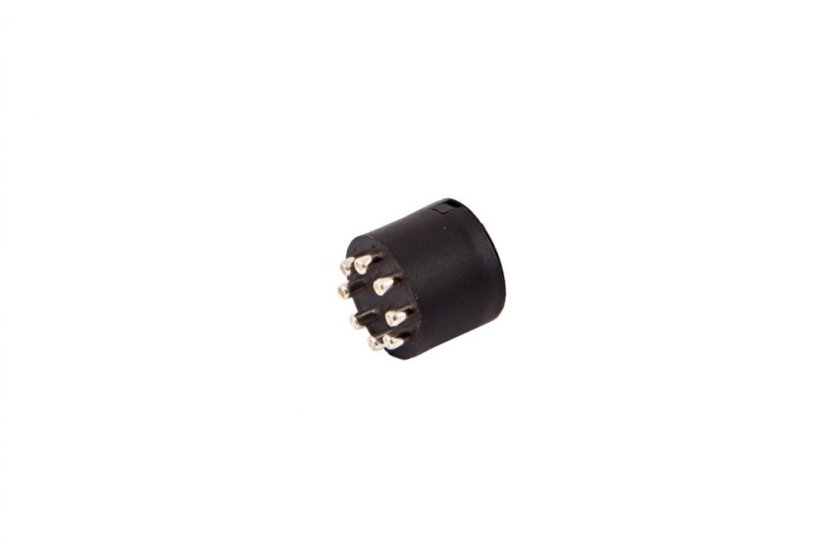

Position Sensor – 8 Contact

0,70 €
Available
ks

8 contacts, switched when changing the position by 45° (two adjacent terminals are always switched), dimensions 14x10 mm. More

Product code: PS1801 EAN: 8594073542557 Shipping and Payment


It works on a mechanical principle (a ball closes the contacts).

Load 12 V/1 mA, resistance in a connected state <20 Ohm, insulation resistance >10 MOhm, lifetime c. 10,000 cycles.
