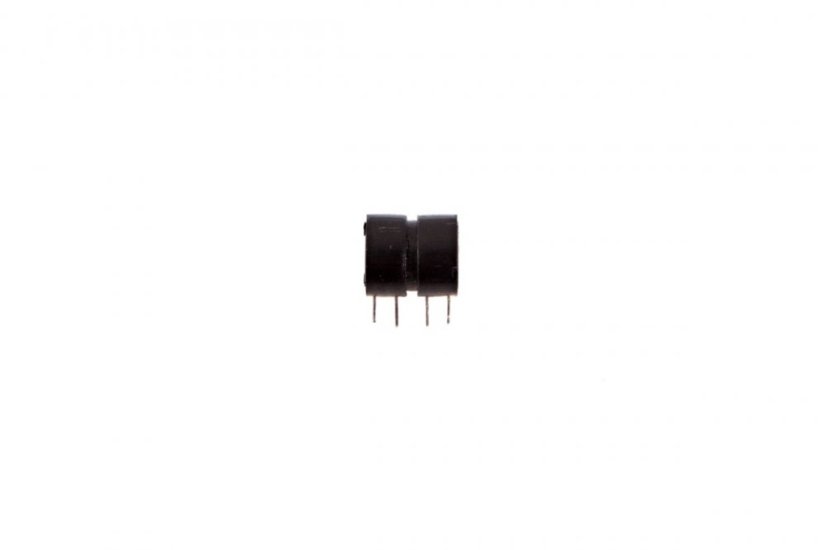

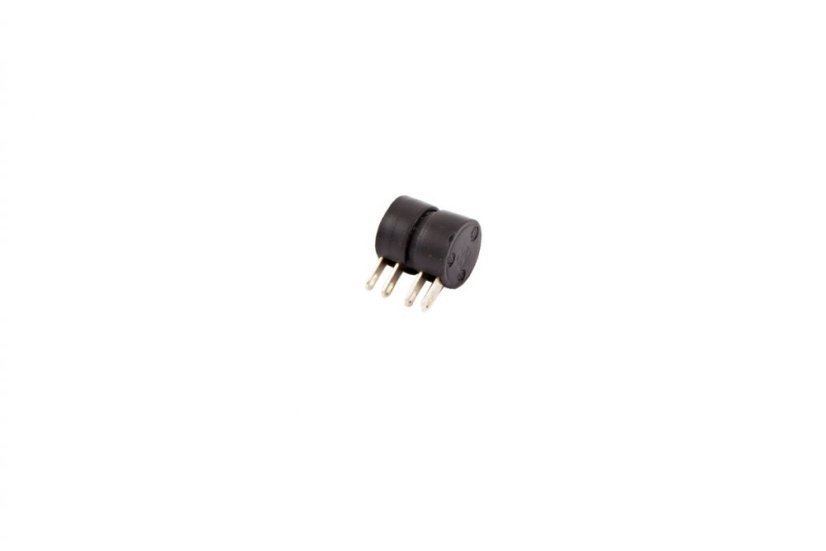

Position Sensor – 3 Contact
Three contacts, it responds to a change in position by +/-90°, dimensions 6x8 mm. More
Product code: PS1303 EAN: 8594073542533 Shipping and Payment
It works on a mechanical principle (a ball closes the contacts).
Load 12 V/1 mA, resistance in a connected state <20 Ohm, insulation resistance >10 MOhm, lifetime c. 10,000 cycles.
